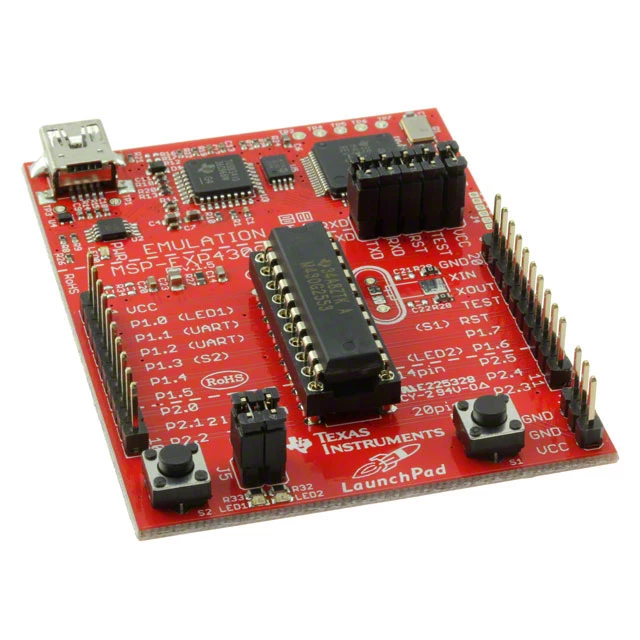

MSP430 Value Line, LaunchPad Development Tool

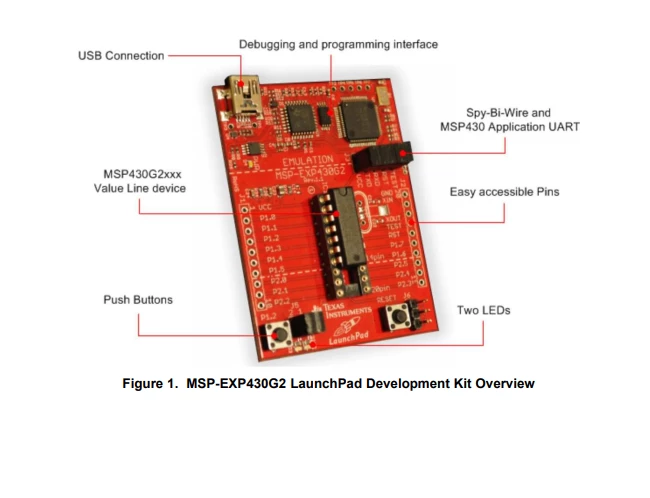

MSP-EXP430G2 LaunchPad development kit features:
• USB debugging and programming interface featuring a driverless installation and application UART
serial communication with up to 9600 Baud
• Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages
(see Section 5.7 for a complete list of supported devices)
• Two general-purpose digital I/O pins connected to green and red LEDs for visual feedback
• Two push button for user feedback and device reset
• Easily accessible device pins for debugging purposes or as socket for adding customized extension
boards
• High-quality 20-pin DIP socket for an easy plug-in or removal of the target device
